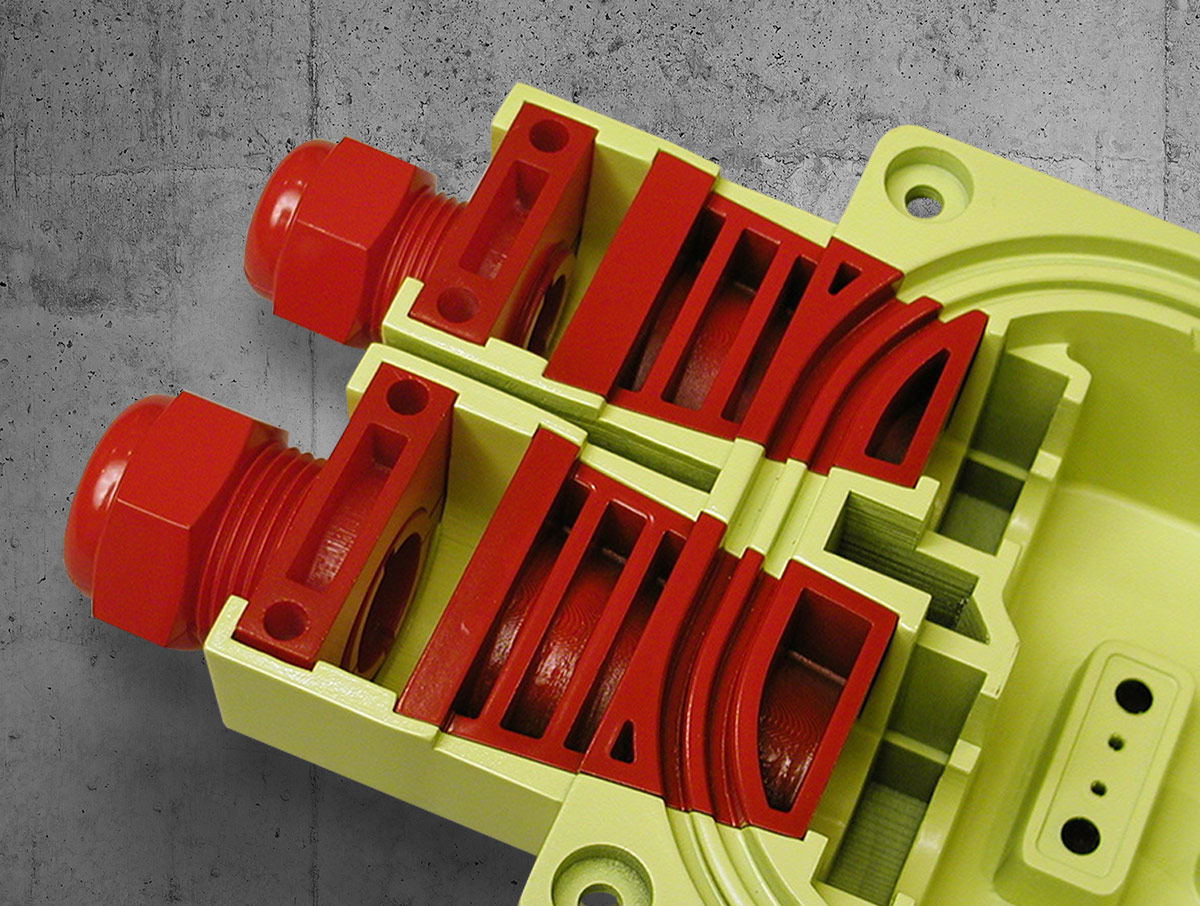

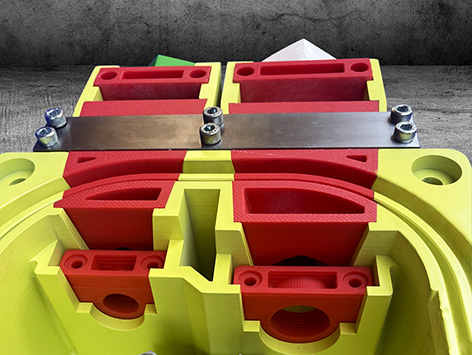

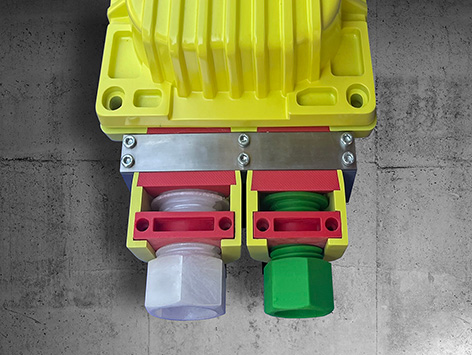

The 1enclose range of superior-quality housing units provide the ultimate watertight and airtight protection for fibre optic connections and electrical cables. The reliable unit that houses the cables has peerless capabilities due to 1enclose’s unique patented mechanical enclosure system developed for inbound and outbound cables over a sealing length of 65cm.
Designed to be effortlessly closed and resealed in around two minutes, and without any specialist equipment, the unit offers continual protection.
The integrity of the structure will not weaken after repeated use, and the slim design allows for the unit to be deployed in densely cabled areas.Suitable for indoor, outdoor, and underground use, the 1enclose continues to protect during, and beyond, installation and splicing. This mechanical closure system allows installers to safely, and quickly, seal off fibres and cables with no network disruption.
| Dimensions | (L x W x H): 1090 x 192 x 164.5 (mm) |
| Number of cable ports | 4 up to 16 |
| High density cable areas | Compact inline for efficient installation |
| Frequent reopening and resealing | Designed and constructed with the highest quality materials to never fail |
| Specially designed fibre management | Safe storage of splices and fibre overlength |
| Standard and modular cables | Cable ports standard size |
| Connectivity | Single circuit elements as well as mass splicing |
| Uncut cable management | Enclosure features separate pass-through zones |
| Support plate | Metal plate for attachment of HDPE duct |
| Strength members | HDPE duct, cable and cable core |
| HDPE duct clamp | Enables installers to use a standard clamp for different types of HDPE ducts |
| Overlength bundles | Separate sealed space for loose tubes |
| Organisers | 20 |
| Channel guide versatility | The channel guides offer the installer the freedom to choose to splice one loose tube on one organiser (single circuit management), or to splice two fibres on each organiser (single fibre management). |
| ANT splices | 600 |
| Heat shrink | 240 |
| Mechanical shrink | 240 |
| Port diameter | 35mm |
| Number of cable ports | 4 up to 16 |
| Dimensions | (L x W x H): 748 x 192.5 x 164.5 (mm) |
| Number of cable ports | 4 up to 16 |
| High density cable areas | Compact inline for efficient installation |
| Frequent reopening and resealing | Designed and constructed with the highest quality materials to never fail |
| Specially designed fibre management | Safe storage of splices and fibre overlength |
| Standard and modular cables | Cable ports standard size |
| Connectivity | Single circuit elements as well as mass splicing |
| Uncut cable management | Enclosure features separate pass-through zones |
| Support plate | Metal plate for attachment of HDPE duct |
| Strength members | HDPE duct, cable and cable core |
| HDPE duct clamp | Enables installers to use a standard clamp for different types of HDPE ducts |
| Overlength bundles | Separate sealed space for loose tubes |
| Organisers | 10 |
| Channel guide versatility | The channel guides offer the installer the freedom to choose to splice one loose tube on one organiser (single circuit management), or to splice two fibres on each organiser (single fibre management). |
| ANT splices | 300 |
| Heat shrink | 120 |
| Mechanical shrink | 120 |
| Port diameter | 35mm |
| Number of cable ports | 4 up to 16 |
Our aim is to improve your operations and save you money along the way. Only by carrying out the most diligent testing procedures can we deliver this promise to you.
Testing Procedures Specification
1enclose isn't just another cable protection solution; it's the optimal choice for a wide range of industries. The unique design, developed through close collaboration with industry leaders, delivers exceptional benefits across various sectors.
The development of 1enclose involved invaluable insights, experience, and knowledge from: Telecom operators, OEM dealers, Cable operators, National railway companies and Utility companies. This collaborative approach ensures 1enclose addresses the specific needs of diverse industries, providing a truly universal solution for superior cable protection.
1enclose have addressed the complications, safety, time, and costs associated with installing direct buried fibre and electrical cables. Combining industry knowledge with groundbreaking technology and impregnable materials, their products guarantee the ultimate seal every time.
Using the form opposite, share your challenges as well as your goals for the future, and we will work with you to identify the optimum solution for your specific needs.
